High Power to Talk Longer

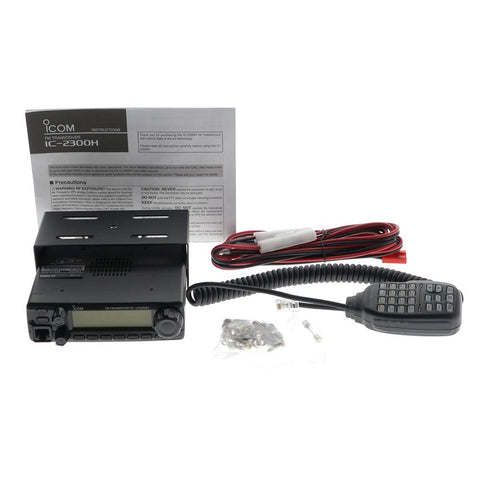

The IC-2300H, 144MHz mobile, retains the same basic features from the popular IC-2200H; powerful 65W output power, simple-to-use user interface, built-in CTCSS and DTCS encoder/decoder, etc. While keeping those basic features, the IC-2300H is packed in to a smaller body (in depth) than the IC-2200H.
Output power |
65W, 25W, 10W, 5W | |
RX frequencies: |
144-148MHz | |
Memory channels: |
207 (includes 6 scan edges & 1 call) |
Simple operation
The IC-2300H’s basic panel layout includes a simple user interface. A large LCD with 6 alphanumeric characters offers a good viewing angle for mobile operation. Select either the amber, yellow or green backlight color. The bottom of the display indicates the available front panel functions.
Built tough
Rough roads won’t stop the IC-2300H from working. This mobile has been tested to and has passed the latest MIL-STD 810 G specifications including shock, vibration and temperature tests. The rugged aluminum diecast chassis provides effective heat dissipation and keeps RF output even during high duty cycle continuous transmission.
Multiple scan functions
The IC-2300H supports various scan types for maximum reception to suit your needs. The DMS (Dynamic Memory Scan) system allows you to scan selected banks from 10 memory banks by simply adding and deleting bank links.
- Full scan
- Programmed scan
- Memory scan
- Bank scan
- Bank link scan (DMS)
- Skip scan
- Priority scan
- Tone scan
Additional features
- Built-in CTCSS and DTCS encoder/decoder for quiet standby and repeater access
- Power supply voltage display
- 4.5W (typical) loud audio
- Reduced depth dimensions
- DTMF autodial
- Time-out timer
- Repeater lockout
- Automatic power off
- S-meter squelch
- Wide/narrow channel setting
- Weather channel receive and weather alert function
- Automatic repeater function
- Selectable squelch delay from short and long
- Squelch attenuator reduces suppression from string signals
