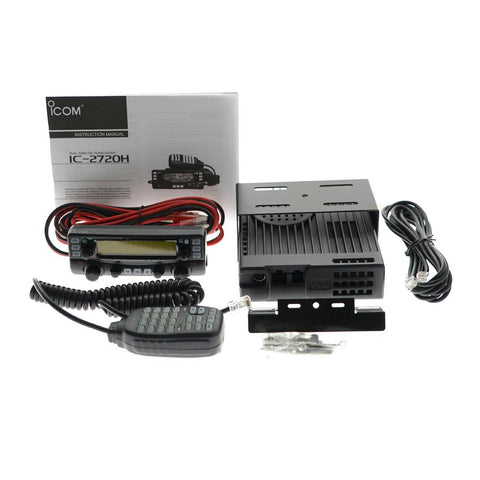

IC-2720H Car Radio transceiver Dual band VHF 136-174MHz UHF 400-470MHz 50W/35W 212CH Dual Display Walkie Talkie

Write a review
  • Sale
  • Dhs. 1,500.00
  • Regular price Dhs. 1,900.00


Transceiver for car Description

The IC-2720H 2M/440 dual bander has all the features you want. You get:  separate front panel, wideband receive, 3 power settings, built-in CTCSS decode/encode, selectable amber/green display, PC compatibility and 212 memory channels. Power output is 50/15/5 watts on 2 meters and 35/15/5 watts on 440 MHz.  It is 9600 BPS packet ready too (6 pin DIN).


transceiver avtomobïln Features
212 Memories vhf uhf dual band
V/V, U/U Simultaneous Receive
Encode/Decode
9600 BPS Packet Ready
Three Output Levels
Separate Head
Receive 118-550, 810-999 MHz (unblocked)
Full Function Mic

General
Frequency coverage Transmit
VHF: 136-174 MHz
UHF: 400-470 MHz
Frequency coverage Receive
Left Side: 118-549 MHz
Right Side: 118-173, 375-549, 810-999MHz
Mode: FM, AM* (* RX only; 118-136 MHz; not guaranteed.)
Number of memory channels: 212 (including 2 call and 10 band edge channels)
Antenna connector: SO-239 (50 ohms)
Power Supply requirement: 13.8 V DC ±15%
Useable temperature range: +14 to +140 °F, -10 to +60 °C
Frequency stability: ±10 ppm
Tuning step increments: 5, 10, 12.5, 15, 20, 25, 30 and 50 kHz
Current drain (at 13.8 V DC)
Receive squelched 1.2 Amps
Maximum audio output 1.8 Amps
Transmit at high power VHF 12 Amps, UHF 11 Amps
Main Unit Dimensions (projections not included):
5.5 x 1.65 x 7.4 inches 2.6 Lbs (140x40x187 mm 1.17 kg).
Controller Dimensions (projections not included):
5.5 x 2 x 1.2 inches 6 ounces (140x50x27 mm 150 g).



radio car Transmitter
Output power:
VHF 50 W, 15 W, 5 W selectable
UHF 35 W, 15 W, 5 W selectable
Modulation system: variable reactance frequency modulation
Max. frequency deviation: ±5.0 kHz
Spurious emissions: Less than -60 dB
Microphone connector: 8-pin modular jack (600 ohms)

radio vhf uhf dual band Receiver
Receive system: Double conversion superheterodyne
Intermediate frequencies (Left/Right): 1st 38.85/450 kHz 2nd 46.05 MHz/455 kHz
Sensitivity: Less than 0.18 micro V for 12dB SINAD
Squelch Sensitivity: 0.13 micro V (at threshold)
Selectivity:
More than 12 kHz -6 dB
Less than 30 kHz -60dB
Spurious rejection ratio: More than 60 dB
Audio output (at 13.8 V DC): More than 2.4 W at 10% distortion with an 8-ohm load
The radio Ext. speaker connector: 2-conductor 1/8" (3.5 mm), 8 ohms
