Specifications
| General | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Frequency Coverage (unit: MHz) |
|
||||||||||||
| Mode | F3E, F2D, F7W* *Optional UT-118 Required |
||||||||||||
| Number of memory Ch. | 207 (incl. 6 scan edges and 1 call) | ||||||||||||
| Operating Temp. Range | -10°C to +60°C; +14°F to +140°F | ||||||||||||
| Frequency stability | ±2.5 ppm (-10°C to 60°C) | ||||||||||||
| Power supply requirement |
7.2V DC (6.0-10.3V DC acceptable; Icom's battery pack only) |
||||||||||||
|
Current drain (at 7.2V DC) |
|
||||||||||||
| Antenna impedance | 50Ω (BNC) | ||||||||||||
| Dimensions (W×H×D) (Projections not included) |
54 × 139 × 37.5 mm; 21/8 × 515/32 × 17/16 in |
||||||||||||
| Weight (approx.) | 390g; 13.8oz (w/ant. and BP-222N) | ||||||||||||
| Transmitter | |
|---|---|

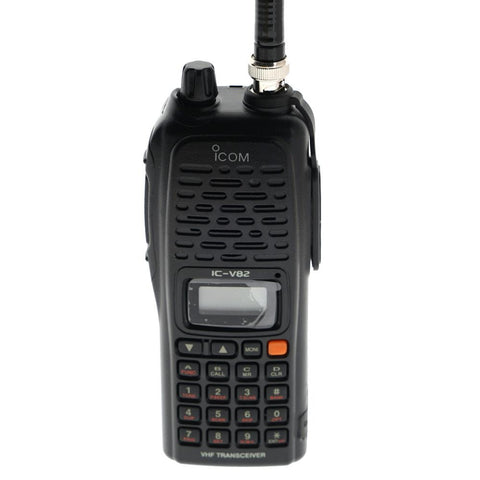

| Output power (at 7.2V DC) IC-V82 IC-U82 |
5.0/2.0/0.5W (High/mid/low) |
| Spurious emissions | Less than -60dBc |
| Max. freq. deviation | ±5.0/±2.5 kHz (Wide/narrow) |
| External Microphone connector | 3-conductor 2.5(d)mm (1/10") / 2.2kΩ |
| Receiver | |
|---|---|
| Receive system | Double conversion superheterodyne |
| Intermediate freq. | 46.35 MHz/450 kHz (1st/2nd) |
| Sensitivity (typical) | 0.16µV (typ.; at 12dB SINAD) |
| Squelch sensitivity | 0.11µV (typ.; threshold) |
| Selectivity | More than 55/50dB (wide/narrow) |
| Intermodulation | 65dB (typ.) |
| Spurious and image rejection |
80dB (typ.; VHF) 70dB (typ.; UHF) |
| Audio output power | 300mW with an 8Ω load |
| Ext. speaker connector | 3-connector 3.5(d) mm (1/8”) / 8Ω |
| Ext. Data connector | 3-connector 2.5(d) mm (1/10”) |
All stated specifications are subject to change without notice or obligation.
